A cadaveric experimental study on domestic robot-assisted total knee arthroplasty_Chinese Journal of Reparative and Reconstructive Surgery

Authors：

CHAI Wei ¹ , XIE Jie ² , ZHANG Xiaogang ³ , HE Chuan ⁴ , YAN Tingfang ⁵ , LIU Li ⁵ , ZHANG Yuan ⁶ , ZHOU Zongke ⁷ , HU Yihe ² , CAO Li ³ , CHEN Jiying ¹ ,  TANG Peifu ¹

1. Department of Orthopedics, the First Medical Center of Chinese PLA General Hospital, Beijing, 100853, P.R.China;
2. Department of Orthopedics, Xiangya Hospital Central South University, Changsha Hunan, 410008, P.R.China;
3. Department of Orthopedics, First Affiliated Hospital of Xinjiang Medical University, Urumqi Xinjiang, 830011, P.R.China;
4. Department of Orthopedics, Ruijin Hospital, Shanghai Jiao Tong University School of Medicine, Shanghai, 200025, P.R.China;
5. Yuanhua Technology Limited, Shenzhen Guangdong, 518000, P.R.China;
6. Department of Orthopedics, Xinqiao Hospital, Affiliated Hospital of Army Medical University, Chongqing, 400037, P.R.China;
7. Department of Orthopedics, West China Hospital, Sichuan University, Chengdu Sichuan, 610041, P.R.China;

Corresponding?author：

TANG Peifu, Email: pftang301@126.com

Keywords：

Total knee arthroplasty; surgical robot; cadaveric experiment

DOI：

10.7507/1002-1892.202010021

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

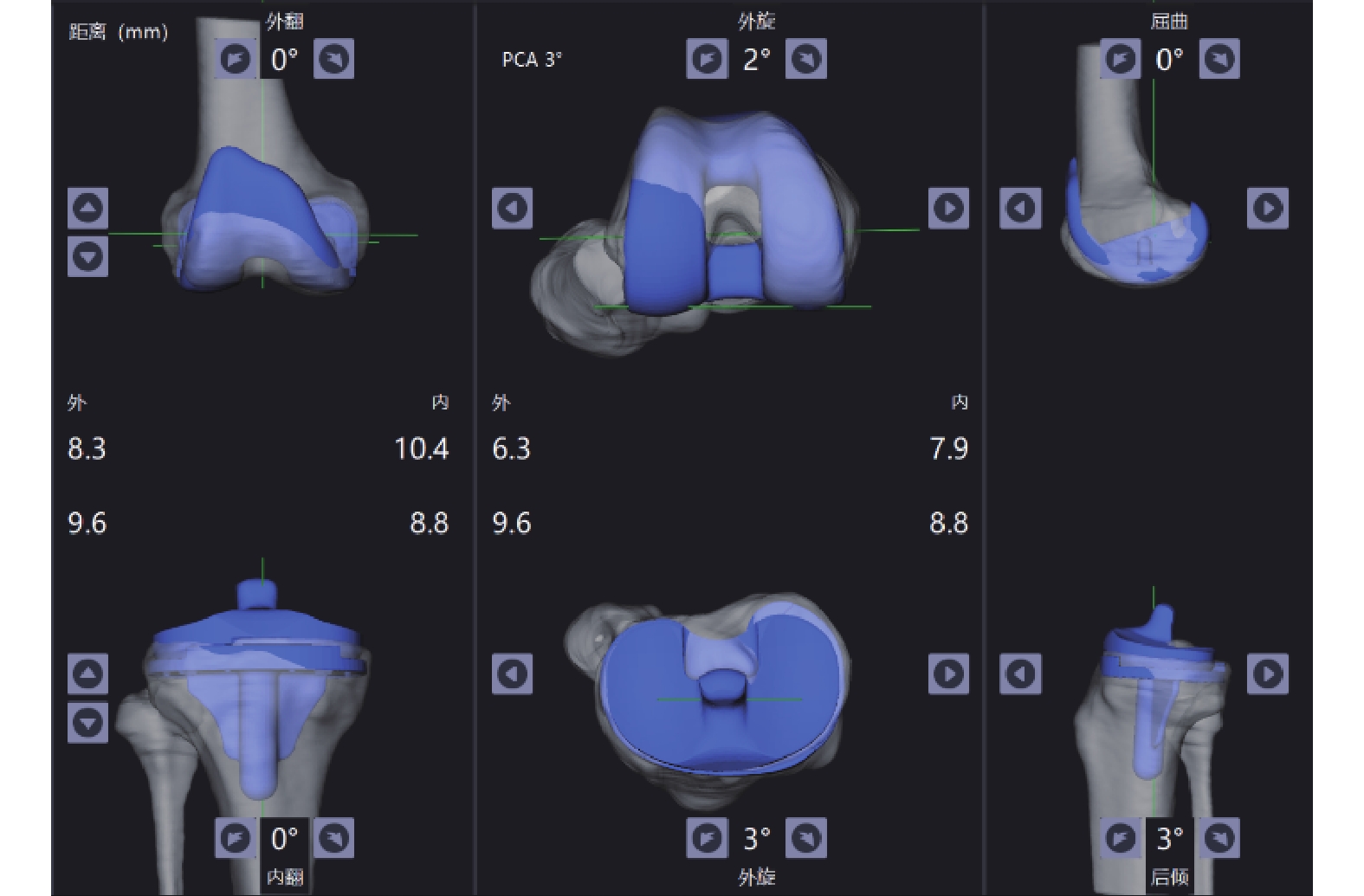

Objective To simulate and validate the performance, accuracy, and safety of the Yuanhua robotic-assisted total knee arthroplasty system (YUANHUA-TKA) through cadaver-based experiment, thus optimizing the robotic system for the future human clinical application.Methods Six unilateral adult cadaver specimens of the lower limbs were scanned by three-dimensional CT before the experiment, and then the three-dimensional models of femur and tibia were obtained by using the preoperative software of YUANHUA-TKA system, so as to plan the type of prosthesis implant, the osteotomy volume and osteotomy angles [hip-knee-ankle angle (HKA), coronal frontal femoral component (FFC) and frontal tibial component (FTC)], the ideal value of HKA was set to 180°, and of FFC and FTC were set to 90°, respectively. The operator could further confirm the osteotomy plan according to the intraoperative situation before osteotomy, and then install the prosthesis after completing the osteotomy in each plane with the assistance of YUANHUA-TKA system. At last, the X-ray films of hip joint, knee joint, and ankle joint were taken and stitched into the full length X-ray film of the lower limb, and HKA, coronal FFC and FTC were measured.Results During the experiment, YUANHUA-TKA system ran stably. All sections of femur and tibia were smooth and no ligament injury was found. After operation, the HKA was 177.1°-179.7°, FFC was 87.9°-91.4°, and FTC was 87.3°-91.4°, which were within ±3° from the ideal values of preoperative planning.Conclusion The YUANHUA-TKA system can assist the surgeon to carry out precise osteotomy according to the preoperative planned value, which has a good auxiliary effect for total knee arthroplasty. It is expected to assist joint surgeons to improve the surgical accuracy in clinical application.

Citation： CHAI Wei, XIE Jie, ZHANG Xiaogang, HE Chuan, YAN Tingfang, LIU Li, ZHANG Yuan, ZHOU Zongke, HU Yihe, CAO Li, CHEN Jiying, TANG Peifu. A cadaveric experimental study on domestic robot-assisted total knee arthroplasty. Chinese Journal of Reparative and Reconstructive Surgery, 2021, 35(4): 409-413. doi: 10.7507/1002-1892.202010021 Copy
