Applied anatomy research of the uncovertebral joint for design of uncovertebral joint fusion cage_Chinese Journal of Reparative and Reconstructive Surgery

Authors：

YANG Yi ,  LIU Hao , WU Tingkui , HU Lingyun , CHEN Lin , RONG Xin , MA Litai , MENG Yang

Department of Orthopedics, West China Hospital, Sichuan University, Chengdu Sichuan, 610041, P.R.China;

Corresponding?author：

LIU Hao, Email: liuhao6304@163.com

Keywords：

Uncovertebral joint; cage; anatomical measurement; CT three-dimensional reconstruction; cervical spine

DOI：

10.7507/1002-1892.201904073

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

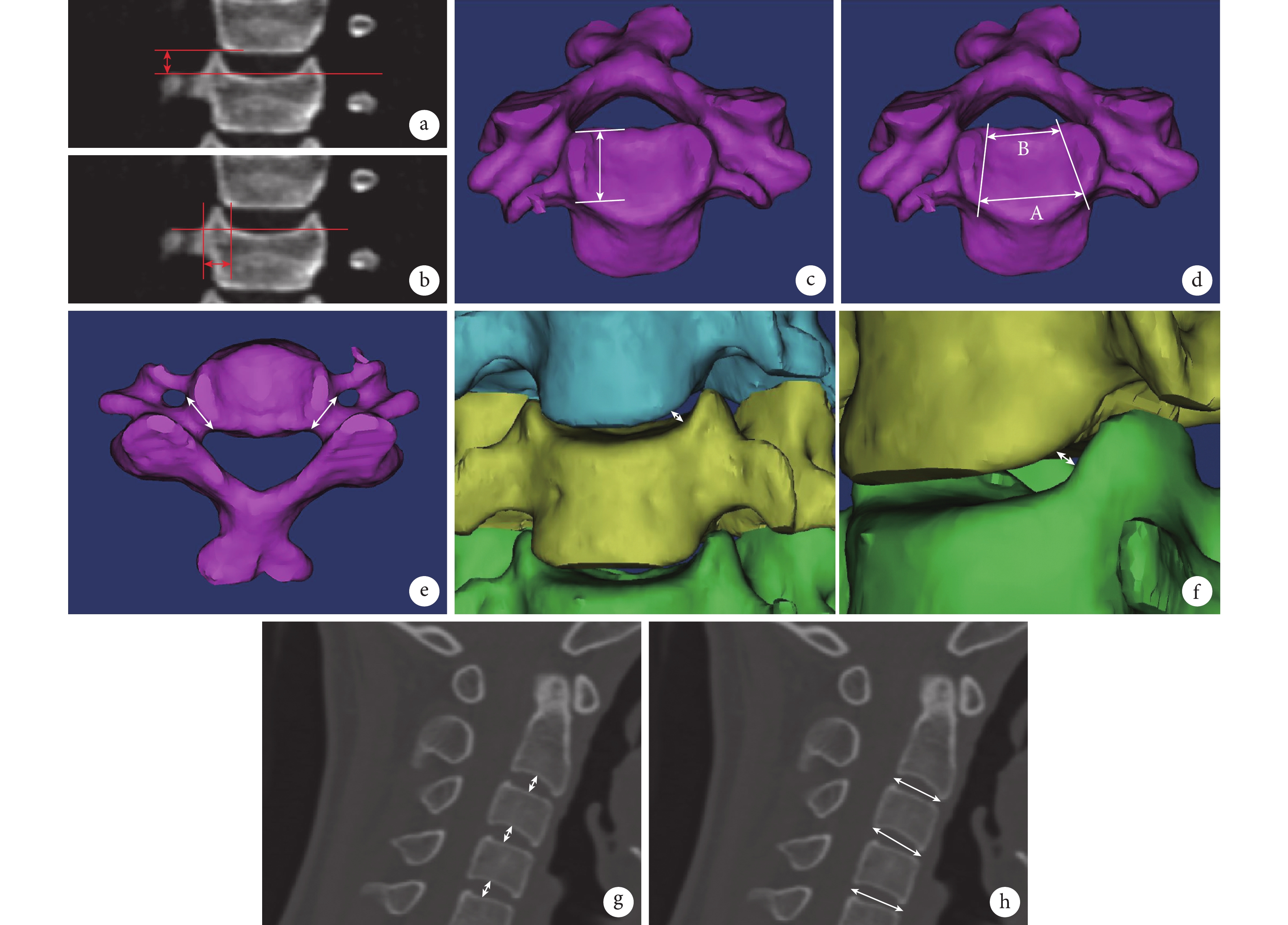

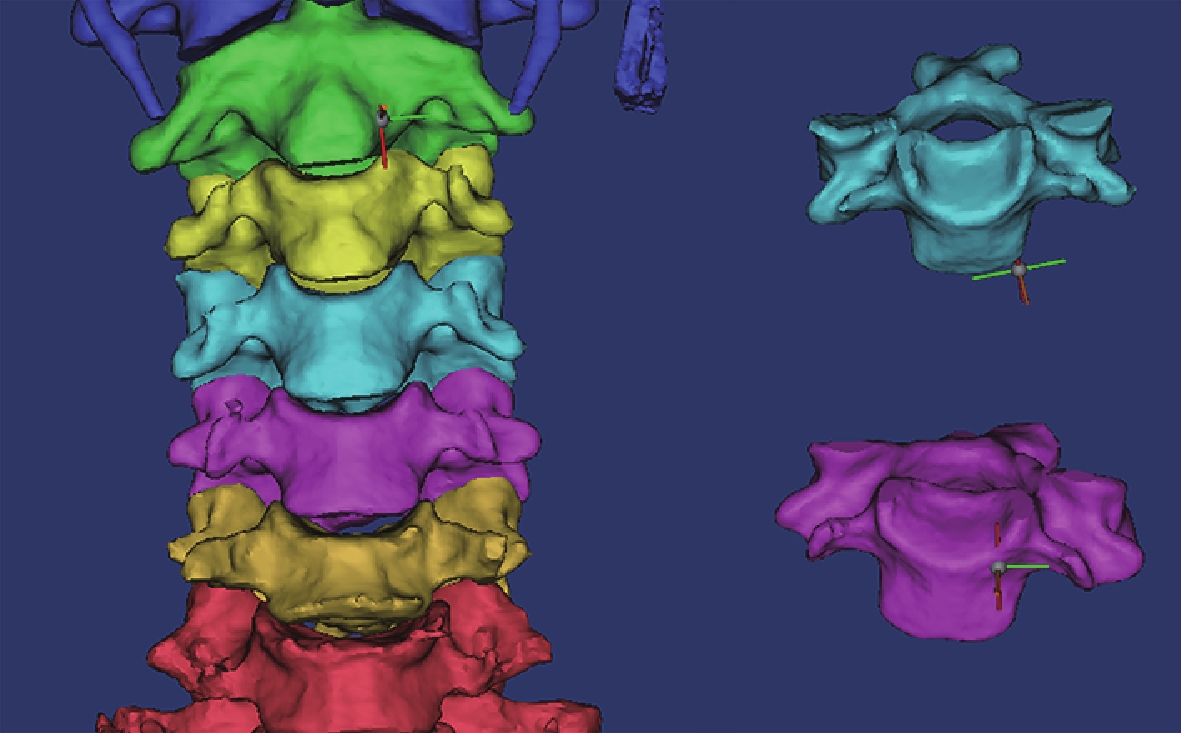

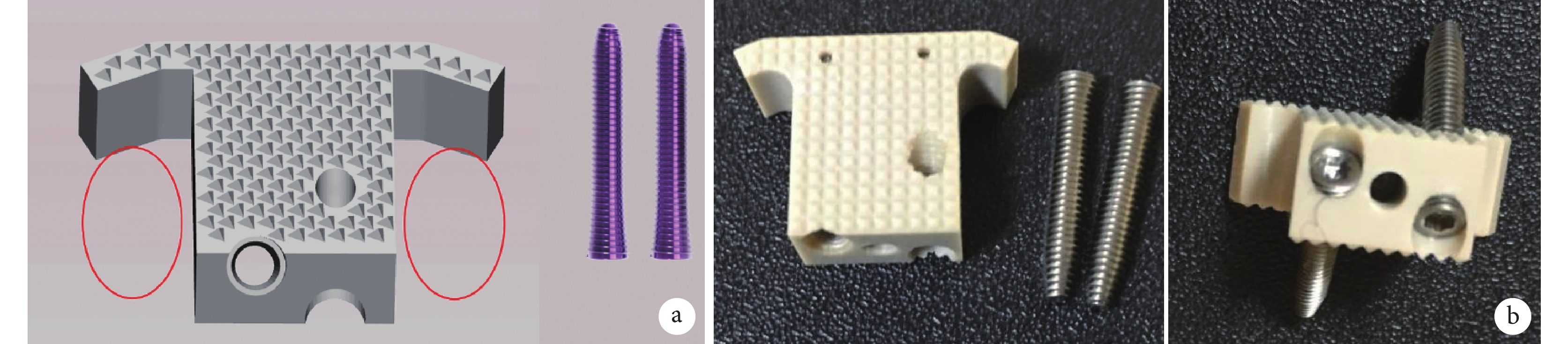

Objective To measure anatomical parameters related to cervical uncovertebral joint and provide data support for the design of uncovertebral joint fusion cage.Methods According to the inclusion and exclusion criteria, raw DICOM data of cervical CT scan in 60 patients (30 males and 30 females, aged 39-60 years) were obtained, then the three-dimensional cervical spine model was reconstructed for anatomical measurement by using the Mimics19.0 software. The height of the uncinate process, the length of the uncinate process, the width of the uncinate process, and the length of the uncovertebral joint in the intervertebral foramen region were measured bilaterally from C₃ to C₇. The anterior and posterior distances between the uncinate processes were measured from C₃ to C₇. The height of the uncovertebral joint space, the central height of the intervertebral disc space, and the depth of the intervertebral disc space were also measured from C_{2, 3} to C_{6, 7}. The mean, standard deviation, maximum, and minimum were calculated by using the SPSS22.0 statistical software for the design of uncovertebral joint fusion cage.Results The height of the uncinate process, the length of the uncinate process, the width of the uncinate process, and the length of the uncovertebral joint in the intervertebral foramen region of C₃-C₇ and the height of the uncovertebral joint space of C_{2, 3}-C_{6, 7} showed no significant difference between two sides (P>0.05). The height of the uncovertebral joint space also had no significant difference between females and males (P>0.05). The anterior distances between the uncinate processes of C₃-C₇ were significantly larger than the posterior distances between the uncinate processes (P<0.05), the uncovertebral joint presented a posterior cohesive shape. The central height of the intervertebral disc space in male group was slightly higher than that in female group, and the differences were significant (P<0.05) at C_{2, 3} and C_{5, 6}; the depth of the intervertebral disc space in male group was significantly higher than that in female group (P<0.05). The central height of the intervertebral disc space was (4.94±0.49) mm (range, 3.81-5.90 mm), the depth of the intervertebral disc space was (15.78±1.23) mm (range, 12.94-18.85 mm), the anterior and posterior distances between the uncinate processes were (17.19±2.39) mm (range, 13.39-24.63 mm) and (10.84±2.12) mm (range, 7.19-16.64 mm), respectively. According to the results of the anatomical research, the height of the uncovertebral joint fusion cage was designed as 5, 6, 7, and 8 mm; the depth of the uncovertebral joint fusion cage was designed as 12, 13, 14, 15, and 16 mm; the width of the uncovertebral joint fusion cage was designed as 14-18 mm; and the two wings are designed as arc-shape with 2 and 3 mm in width.Conclusion There are certain differences in the anatomical parameters of the uncovertebral joint between different segments. The uncovertebral joint fusion cage that designed based on the results of anatomical research is suitable for most patients.

Citation： YANG Yi, LIU Hao, WU Tingkui, HU Lingyun, CHEN Lin, RONG Xin, MA Litai, MENG Yang. Applied anatomy research of the uncovertebral joint for design of uncovertebral joint fusion cage. Chinese Journal of Reparative and Reconstructive Surgery, 2019, 33(12): 1491-1497. doi: 10.7507/1002-1892.201904073 Copy
