Biomechanical comparison of three kinds of fixation instruments for calcaneal osteotomy_Chinese Journal of Reparative and Reconstructive Surgery

Authors：

BAI Jiyue ¹ ,  XU Yongqing ² , HE Xiaoqing ² , LI Chuan ² , LIU Shuai ³ , LI Liang ³

1. Graduate Management Brigade, Army Medical University, Chongqing, 400038, P.R.China;
2. Department of Orthopedics, Kunming General Hospital, Chengdu Military Region of Chinese PLA, Kunming Yunnan, 650032, P.R.China;
3. Graduate Department of Kunming Medical University, Kunming Yunnan, 650032, P.R.China;

Corresponding?author：

XU Yongqing, Email: xuyongqingkm@163.net

Keywords：

Calcaneal osteotomy; nickel-titanium shape memory alloy; stepped plate; compression stiffness; biomechanics

DOI：

10.7507/1002-1892.201709121

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

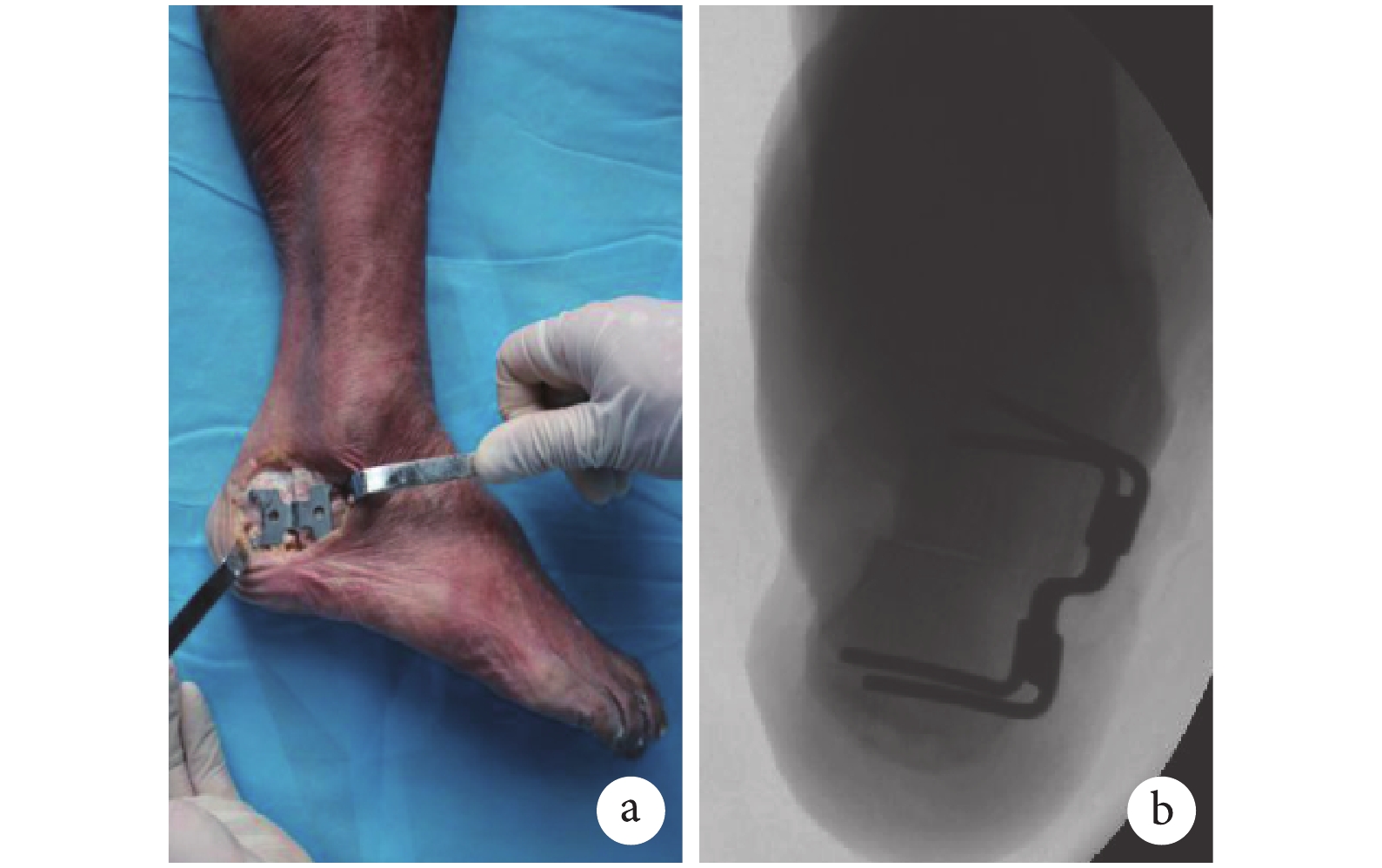

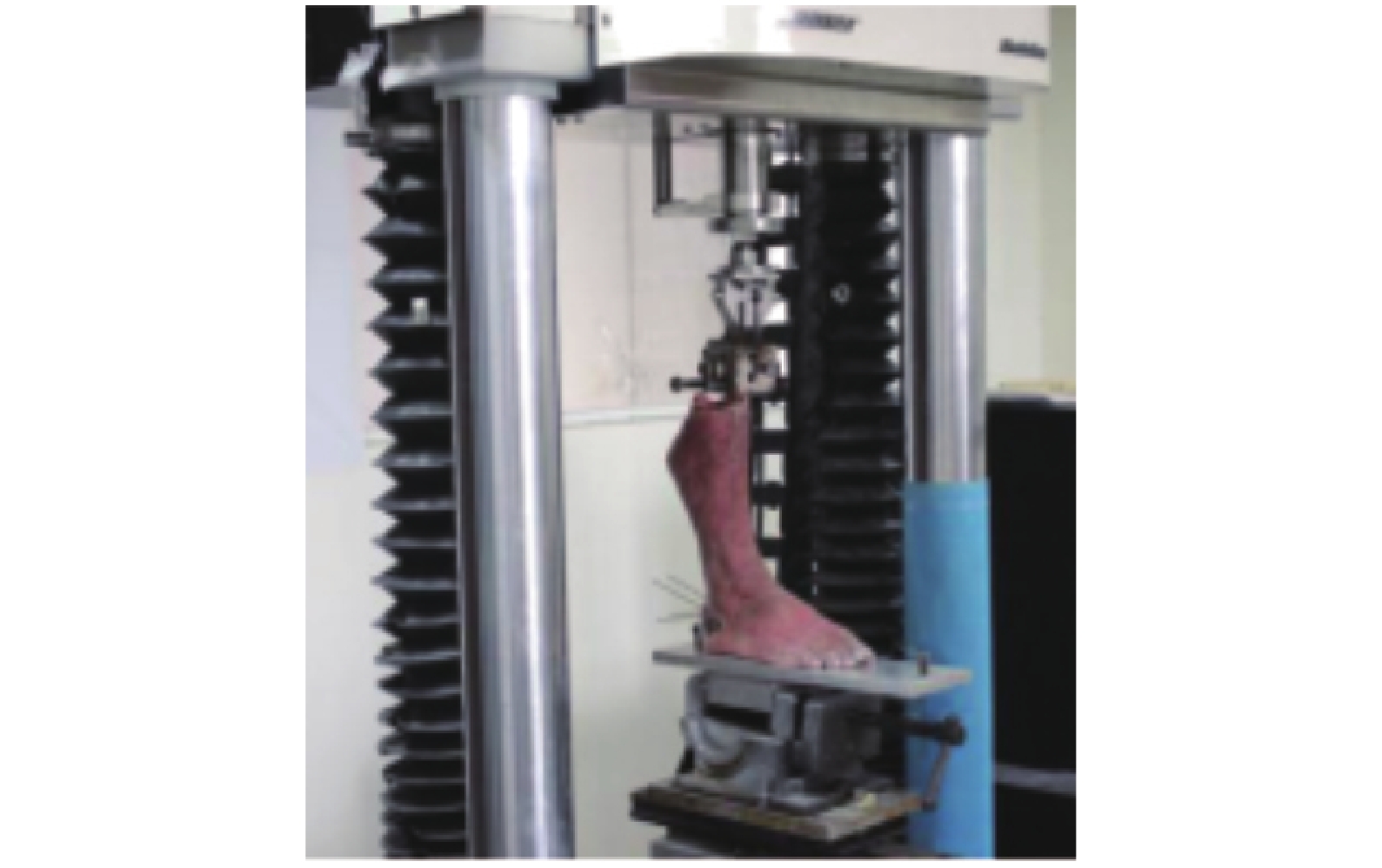

ObjectiveTo compare the biomechanical characteristics of self-made nickel-titanium shape memory alloy stepped plate with calcaneal plate and cannulated compression screws in fixing calcaneal osteotomy.MethodsCalcaneal osteotomy was operated on 6 fresh-frozen lower limbs collected from donors. Then three kinds of fixation materials were applied in random, including the self-made nickel-titanium shape memory alloy stepped plate (group A), calcaneal plate (group B), and cannulated compression screws (group C). Immediately after fixation, axial loading of 20-600 N and 20 N/s in speed was introduced to record the biomechanical data including maximum displacement, elastic displacement, and maximum load. Then fatigue test was performed (5 Hz in frequency and repeat 3 000 times) and the same axial loading was introduced to collect the biomechanical data. Finally, the axial compression stiffness before and after fatigue test were calculated.ResultsThere was no significant difference in the axial compression stiffness between pre- and post-fatigue test in each group (P>0.05). However, the axial compression stiffness was significant higher in group A than that in groups B and C both before and after fatigue test (P<0.05). No significant difference was found between group B and group C (P>0.05).ConclusionSelf-made nickel-titanium shape memory alloy stepped plate is better than calcaneal plate and cannulated compression screws in axial load stiffness after being used to fix calcaneal osteotomy.

Citation： BAI Jiyue, XU Yongqing, HE Xiaoqing, LI Chuan, LIU Shuai, LI Liang. Biomechanical comparison of three kinds of fixation instruments for calcaneal osteotomy. Chinese Journal of Reparative and Reconstructive Surgery, 2018, 32(2): 192-194. doi: 10.7507/1002-1892.201709121 Copy
