MODIFIED POSTEROLATERAL COUNTER-CURVED INCISION WITH DOUBLE INTERMUSCULAR APPROACH IN TREATING POSTEROLATERAL TIBIAL PLATEAU FRACTURES_Chinese Journal of Reparative and Reconstructive Surgery

Authors：

 ZONGShuangle , SULixin , LILigeng , LIANGWeidong , ZHAOXiaoming , WANGAijun , LILidong

Department of Orthopaedics, the Second Hospital of Tangshan, Tangshan Hebei, 063000, P. R. China;

Corresponding?author：

ZONGShuangle, Email: zongshuangle@163.com

Keywords：

Tibia plateau fracture; Posterolateral approach; Internal fixation

DOI：

10.7507/1002-1892.20160219

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

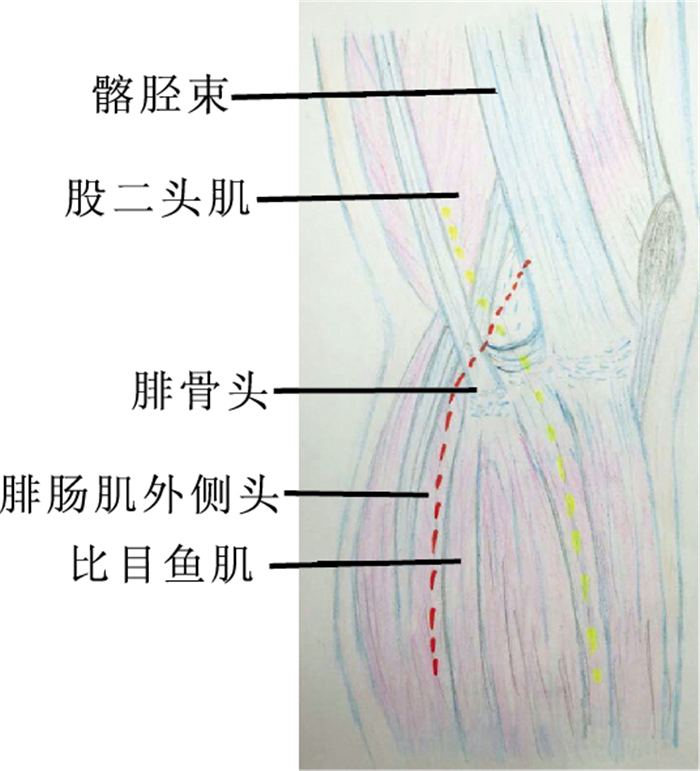

Objective To evaluate the effectiveness of the modified posterolateral counter-curved incision with double intermuscular approach for the treatment of posterolateral tibial plateau fractures. Methods A retrospective analysis was made on the clinical data of 32 patients with posterolateral tibial plateau fractures between September 2012 and October 2014. There were 22 males and 10 females, aged 19 to 55 years (mean, 40.5 years). The causes of injury included traffic accident in 17 cases, falling from height in 9 cases, and falling in 6 cases. They had fresh closed fracture; injury to hospitalization time was 3 hours to 5 days (mean, 2 days). According to Schatzker tibial plateau fracture classification criteria, 20 cases were rated as type II, and 12 cases as type III. All patients underwent a modified posterolateral counter-curved incision with double intermuscular approach to expose tibial posterolateral condyle and anterolateral condyle. After a good visual control of fracture reduction, the anterolateral and posterolateral fractures were fixed with two-dimensional buttress plate respectively. Results The incisions healed at stage I, with no major neurovascular injury. According to radiological assessment of the DeCoster score, the results were excellent in 21 cases, and fair in 11 cases. All of the 32 patients were followed up 18 to 30 months (mean, 20.5 months). The X-ray films showed that all patients obtained good fracture union, and the mean time of fracture union was 12.3 weeks (range, 10-16 weeks). No fixation failure or no obvious loss of articular surface reduction was observed during follow-up. The range of motion of the affected knees was 2-135° (mean, 120°). The mean American Hospital for Special Surgery (HSS) score was 90.05 (range, 83-96) at 18 months after operation. Conclusion The modified posterolateral counter-curved incision with double intermuscular approach could fully expose posterolateral tibia plateau, and good fracture reduction and reliable fixation can be obtained under direct vision.

Citation： ZONGShuangle, SULixin, LILigeng, LIANGWeidong, ZHAOXiaoming, WANGAijun, LILidong. MODIFIED POSTEROLATERAL COUNTER-CURVED INCISION WITH DOUBLE INTERMUSCULAR APPROACH IN TREATING POSTEROLATERAL TIBIAL PLATEAU FRACTURES. Chinese Journal of Reparative and Reconstructive Surgery, 2016, 30(9): 1076-1080. doi: 10.7507/1002-1892.20160219 Copy

1.	Partenheimer A, G?sling T, Müller M, et al. Management of bicondylar fractures of the tibial plateau with unilateral fixed-angle plate fixation. Unfallchirurg, 2007, 110(8):675-683.
2.	Bhattacharyya T, McCarty LP 3rd, Harris MB, et al. The posterior shearing tibial plateau fracture:treatment and results via a posterior approach. J Orthop Trauma, 2005, 19(5):305-310.
3.	Lobenhoffer P, Gerich T, Bertram T, et al. Particular posteromedial and posterolateral approaches for the treatment of tibial head fractures. Unfallchirurg, 1997, 100(12):957-967.
4.	羅從風, 姜銳, 仲飆, 等.經后側入路支撐鋼板固定治療脛骨平臺后側劈裂骨折.中華創傷骨科雜志, 2007, 9(1):6-9.
5.	陶杰, 杭棟華, 王秋根, 等.改良側后方入路治療脛骨平臺后方剪力骨折.中國矯形外科雜志, 2008, 16(24):1863-1866.
6.	俞光榮, 夏江, 周家鈐, 等.經后外側入路治療脛骨平臺單純后外側骨折.中華外科雜志, 2010, 48(5):390-392.
7.	莊巖, 王鵬飛, 張堃, 等.經腓骨截骨入路治療脛骨平臺后外側骨折的療效觀察.中華骨科雜志, 2012, 32(8):732-738.
8.	Liu GY, Xiao BP, Luo CF, et al. Results of a modified posterolateral approach for the isolated posterolateral tibial plateau fracture. Indian J Orthop, 2016, 50(2):117-122.
9.	朱海濤, 王文躍, 王儉, 等.外后側弧形切口雙肌間隙入路治療脛骨后外側平臺塌陷骨折.中華骨科雜志, 2014, 34(7):703-708.
10.	Schatzker J, McBroom R, Bruce D. The tibial plateau fracture. The Toronto experience 1968-1975. Clin Orthop Relat Res, 1979, (138):94-104.
11.	Sun H, Luo CF, Yang G, et al. Anatomical evaluation of the modified posterolateral approach for posterolateral tibial plateau fracture. Eur J Orthop Surg Traumatol, 2013, 23(7):809-818.
12.	DeCoster TA, Willis MC, Marsh JL, et al. Rank order analysis of tibial plafond fractures:does injury or reduction predict outcome? Foot Ankle Int, 1999, 20(1):44-49.
13.	Luo CF, Sun H, Zhang B, et al. Three-column fixation for complex tibial plateau fractures. J Orthop Trauma, 2010, 24(11):683-692.
14.	Patange Subba Rao SP, Lewis J, Haddad Z, et al. Three-column classification and Schatzker classification:a three-and two-dimensional computed tomography characterisation and analysis of tibial plateau fractures. Eur J Orthop Surg Traumatol, 2014, 24(7):1263-1270.
15.	Yoon R, Liporace FA, Egol KA. Definitive fixation of tibial plateau fractures. Orthop Clin North Am, 2015, 46(3):363-375.
16.	Frosch KH, Balcarek P, Walde T, et al. A new posterolateral approach without fibula osteotomy for the treatment of tibial plateau fractures. J Orthop Trauma, 2010, 24(8):515-520.
17.	Zhang W, Luo CF, Putnis S, et al. Biomechanical analysis of four different fixations for the posterolateral shearing tibial plateau fracture. Knee, 2012, 19(2):94-98.
18.	Yu B, Han K, Zhan C, et al. Fibular head osteotomy:a new approach for the treatment of lateral or posterolateral tibial plateau fractures. Knee, 2010, 17(5):313-318.
19.	陳紅衛, 張根福, 潘俊, 等.改良前外側入路脛骨近端鎖定加壓鋼板固定治療脛骨平臺后外側骨折.中華骨科雜志, 2013, 33(9):935-940.

1. Partenheimer A, G?sling T, Müller M, et al. Management of bicondylar fractures of the tibial plateau with unilateral fixed-angle plate fixation. Unfallchirurg, 2007, 110(8):675-683.
2. Bhattacharyya T, McCarty LP 3rd, Harris MB, et al. The posterior shearing tibial plateau fracture:treatment and results via a posterior approach. J Orthop Trauma, 2005, 19(5):305-310.
3. Lobenhoffer P, Gerich T, Bertram T, et al. Particular posteromedial and posterolateral approaches for the treatment of tibial head fractures. Unfallchirurg, 1997, 100(12):957-967.
4. 羅從風, 姜銳, 仲飆, 等.經后側入路支撐鋼板固定治療脛骨平臺后側劈裂骨折.中華創傷骨科雜志, 2007, 9(1):6-9.
5. 陶杰, 杭棟華, 王秋根, 等.改良側后方入路治療脛骨平臺后方剪力骨折.中國矯形外科雜志, 2008, 16(24):1863-1866.
6. 俞光榮, 夏江, 周家鈐, 等.經后外側入路治療脛骨平臺單純后外側骨折.中華外科雜志, 2010, 48(5):390-392.
7. 莊巖, 王鵬飛, 張堃, 等.經腓骨截骨入路治療脛骨平臺后外側骨折的療效觀察.中華骨科雜志, 2012, 32(8):732-738.
8. Liu GY, Xiao BP, Luo CF, et al. Results of a modified posterolateral approach for the isolated posterolateral tibial plateau fracture. Indian J Orthop, 2016, 50(2):117-122.
9. 朱海濤, 王文躍, 王儉, 等.外后側弧形切口雙肌間隙入路治療脛骨后外側平臺塌陷骨折.中華骨科雜志, 2014, 34(7):703-708.
10. Schatzker J, McBroom R, Bruce D. The tibial plateau fracture. The Toronto experience 1968-1975. Clin Orthop Relat Res, 1979, (138):94-104.
11. Sun H, Luo CF, Yang G, et al. Anatomical evaluation of the modified posterolateral approach for posterolateral tibial plateau fracture. Eur J Orthop Surg Traumatol, 2013, 23(7):809-818.
12. DeCoster TA, Willis MC, Marsh JL, et al. Rank order analysis of tibial plafond fractures:does injury or reduction predict outcome? Foot Ankle Int, 1999, 20(1):44-49.
13. Luo CF, Sun H, Zhang B, et al. Three-column fixation for complex tibial plateau fractures. J Orthop Trauma, 2010, 24(11):683-692.
14. Patange Subba Rao SP, Lewis J, Haddad Z, et al. Three-column classification and Schatzker classification:a three-and two-dimensional computed tomography characterisation and analysis of tibial plateau fractures. Eur J Orthop Surg Traumatol, 2014, 24(7):1263-1270.
15. Yoon R, Liporace FA, Egol KA. Definitive fixation of tibial plateau fractures. Orthop Clin North Am, 2015, 46(3):363-375.
16. Frosch KH, Balcarek P, Walde T, et al. A new posterolateral approach without fibula osteotomy for the treatment of tibial plateau fractures. J Orthop Trauma, 2010, 24(8):515-520.
17. Zhang W, Luo CF, Putnis S, et al. Biomechanical analysis of four different fixations for the posterolateral shearing tibial plateau fracture. Knee, 2012, 19(2):94-98.
18. Yu B, Han K, Zhan C, et al. Fibular head osteotomy:a new approach for the treatment of lateral or posterolateral tibial plateau fractures. Knee, 2010, 17(5):313-318.
19. 陳紅衛, 張根福, 潘俊, 等.改良前外側入路脛骨近端鎖定加壓鋼板固定治療脛骨平臺后外側骨折.中華骨科雜志, 2013, 33(9):935-940.
