BIOMECHANICAL COMPARATIVE STUDY ON PROXIMAL FEMORAL LOCKING PLATE AND Gamma3 FOR TREATMENT OF STABLE INTERTROCHANTERIC FRACTURE_Chinese Journal of Reparative and Reconstructive Surgery

Authors：

JIANGWei ,  LIUYuehong , YANGLing , XUWei , LIUShuping , ZHANGDesheng , CHENXi , WANGHong

Department of Orthopaedics, Deyang People's Hospital, Deyang Sichuan, 618000, P. R. China;

Corresponding?author：

LIUYuehong, Email: liuyuehong@vip.sina.com

Keywords：

Stable intertrochanteric fracture; Internal fixation; Biomechanics

DOI：

10.7507/1002-1892.20140239

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

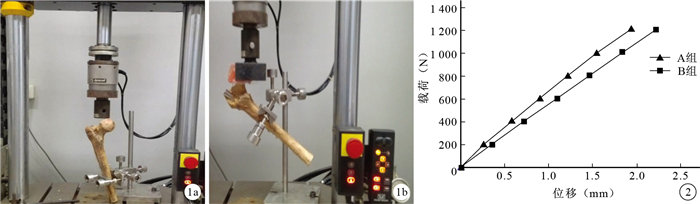

Objective To compare the biomechanical properties between the proximal femoral locking plate and Gamma3 for fixing stable intertrochanteric fracture so as to provide a theoretical basis for selecting internal fixation in the clinical application. Methods Five pairs of antiseptic femur specimens were selected. Specimens of each pair of matching were randomly divided into groups A and B (n=5). All specimens were made the intertrochanteric fracture of 31A1.1 type according to AO/Association for the Study of Internal Fixation (AO/ASIF) classification. Fracture was fixed with Gamma3 in group A and with proximal femoral locking plate in group B. The axial compression, destruction, and torsion tests were carried out on the mechanical testing machine. Results Axial compression test:The load-displacement curve of groups A and B was basically a straight line; axial stiffness of groups A and B was (621.00±36.48) N/mm and (542.55±46.94) N/mm respectively, showing significant difference (t=3.648, P=0.036). Destruction test:The maximum yield load of groups A and B was (4 394.82±450.37) N and (2 987.54±112.14) N respectively, showing significant difference (t=5.433, P=0.032). After loading maximum yield load, femoral fracture occurred again, and internal fixation and bone interface loosening were observed in group A; bending and breaking of proximal locking screw for internal fixation were found in group B, but loosening of internal fixation and bone interface was more obvious in group A than in group B. Torsion test:The torque of specimens in 2 groups increased with the increase of torsion angle (P < 0.05), the torque corresponding to the torsion angle in group B was larger than that in group A, but the difference was not significant (P > 0.05). The torsional stiffness of groups A and B was (1.78±0.16) N·mm/deg and (2.01±0.08) N·mm/deg respectively, showing no significant difference (t=-3.833, P=0.162). Conclusion Proximal femoral locking plate and Gamma3 in the treatment of stable intertrochanteric fracture have good biomechanical properties, which can meet the requirements of minimal invasion, strong internal fixation, and early activity.

Citation： JIANGWei, LIUYuehong, YANGLing, XUWei, LIUShuping, ZHANGDesheng, CHENXi, WANGHong. BIOMECHANICAL COMPARATIVE STUDY ON PROXIMAL FEMORAL LOCKING PLATE AND Gamma3 FOR TREATMENT OF STABLE INTERTROCHANTERIC FRACTURE. Chinese Journal of Reparative and Reconstructive Surgery, 2014, 28(9): 1096-1099. doi: 10.7507/1002-1892.20140239 Copy

1.	王亦璁, 姜保國.骨與關節損傷.5版.北京:人民衛生出版社, 2012:1160-1163.
2.	van Embden D, Rhemrev SJ, Meylaerts SA, et al.The comparison of two classifications for trochanteric femur fractures:the AO/ASIF classification and the Jensen classification.Injury, 2010, 41(4):377-381.
3.	Peleg E, Mosheif R, Liebergall M, et al.A short plate compression screw with diagonal bolts-a biomechanical evaluation performed experimentally and by numerical computation.Clin Biomech (Bristol, Avon), 2006, 21(9):963-968.
4.	譚三智, 黃桂填.DHS和PFN治療股骨粗隆間骨折的療效分析.實用醫學雜志, 2010, 26(18):3395-3396.
5.	魯英, 羅先正.203例股骨粗隆間骨折治療分析.骨與關節損傷雜志, 1991, 6(1):7-9.
6.	S.Terry Canale, James H.Beaty, 等.坎貝爾骨科手術學.王巖, 譯.11版.北京:人民軍醫出版社, 2009:2538-2539.
7.	Bojan AJ, Beimel C, Speitling A, et al.3066 consecutive gamma nails.12 years experience at a single centre.BMC Musculoskelet Disord, 2010, 11:133.
8.	Liu M, Yang Z, Pei F, et al.A meta-analysis of the Gamma nail and dynamic hip screw in treating peritrochanteric fractures.Int Orthop, 2010, 34(3):323-328.
9.	徐耀增, 耿德春, 王現彬, 等.防旋股骨近端髓內釘與第三代Gamma釘治療老年股骨轉子間骨折的對比研究.中華創傷雜志, 2011, 27(1):33-37.
10.	胡力.股骨轉子間骨折的內固定器應用進展.中國矯形外科雜志, 2013, 21(10):989-992.
11.	Zha GC, Chen ZL, Qi XB, et al.Treatment of pertrochanteric fracture with a proximal femur locking compression plate.Injury, 2011, 42(11):1294-1299.
12.	李必奎, 陳周兵, 徐富生.股骨近端鎖定鋼板治療股骨轉子間骨折.中國修復重建外科雜志, 2011, 25(10):1273-1275.
13.	Seral B, García JM, Cego?ino J, et al.Finite element study of intramedullary osteosynthesis in the treatment of trochanteric fractures of the hip:Gamma and PFN.Injury, 2004, 35(2):130-135.
14.	Sitthiseripratip K, Van Oosterwyck H, Vander Sloten J, et al.Finite element study of trochanteric gamma nail for trochanteric fracture.Med Eng Physics, 2003, 25(2):99-106.
15.	劉瑞波, 白音, 孔令英, 等.力臂式外固定器治療股骨粗隆間骨折實驗研究和臨床應用.中國骨傷, 1999, 12(2):20-23.
16.	Rydell N.Biomechanics of the hip-joint.Clin Orthop Relat Res, 1973, (92):6-15.
17.	Norris R, Bhattacharjee D, Parker MJ.Occurrence of secondary fracture around intramedullary nails used for trochanteric hip fractures:a systematic review of 13, 568 patients.Injury, 2012, 43(6):706-711.
18.	張波, 潘顯明, 權毅, 等.三種內固定器治療股骨頸骨折的臨床觀察及生物力學分析.西南國防醫藥, 2002, 12(3):210-212.
19.	孫強, 許平安, 鄭加法.三種手術方式固定不穩定性股骨轉子間骨折的生物力學研究.中華創傷雜志, 2012, 28(12):1078-1082.
20.	Windolf J, Hollander DA, Hakimi M, et al.Pitfalls and complications in the use of the proximal femoral nail.Langenbecks Arch Surg, 2005, 390(1):59-65.
