Research on the Effects of 20 Hz Frequency Somatosensory Vibration Stimulation on Electroencephalogram Features_Journal of Biomedical Engineering

Authors：

MANa ¹ , WANGXuemin ^1,2 , TIANMiao ¹ , LIUJing ¹ , QIHongzhi ^1,2 , MINGDong ^1,2 ,  ZHOUPeng ^1,2

1. School of Precision Instrument and Optoelectronics Engineering, Tianjin University, Tianjin 300072, China;
2. Tianjin Key Laboratory of Biomedical Detection Technology and Instrumentation, Tianjin 300072, China;

Corresponding?author：

ZHOUPeng, Email: zpzp@tju.edu.cn

Keywords：

somatosensory vibration; brain network; relative change of relative power; Lempel-Ziv complexity

DOI：

10.7507/1001-5515.20160168

Video：

Export PDF Favorites Scan Get Citation

Abstract Full text Figures/Tables Video References Cited by

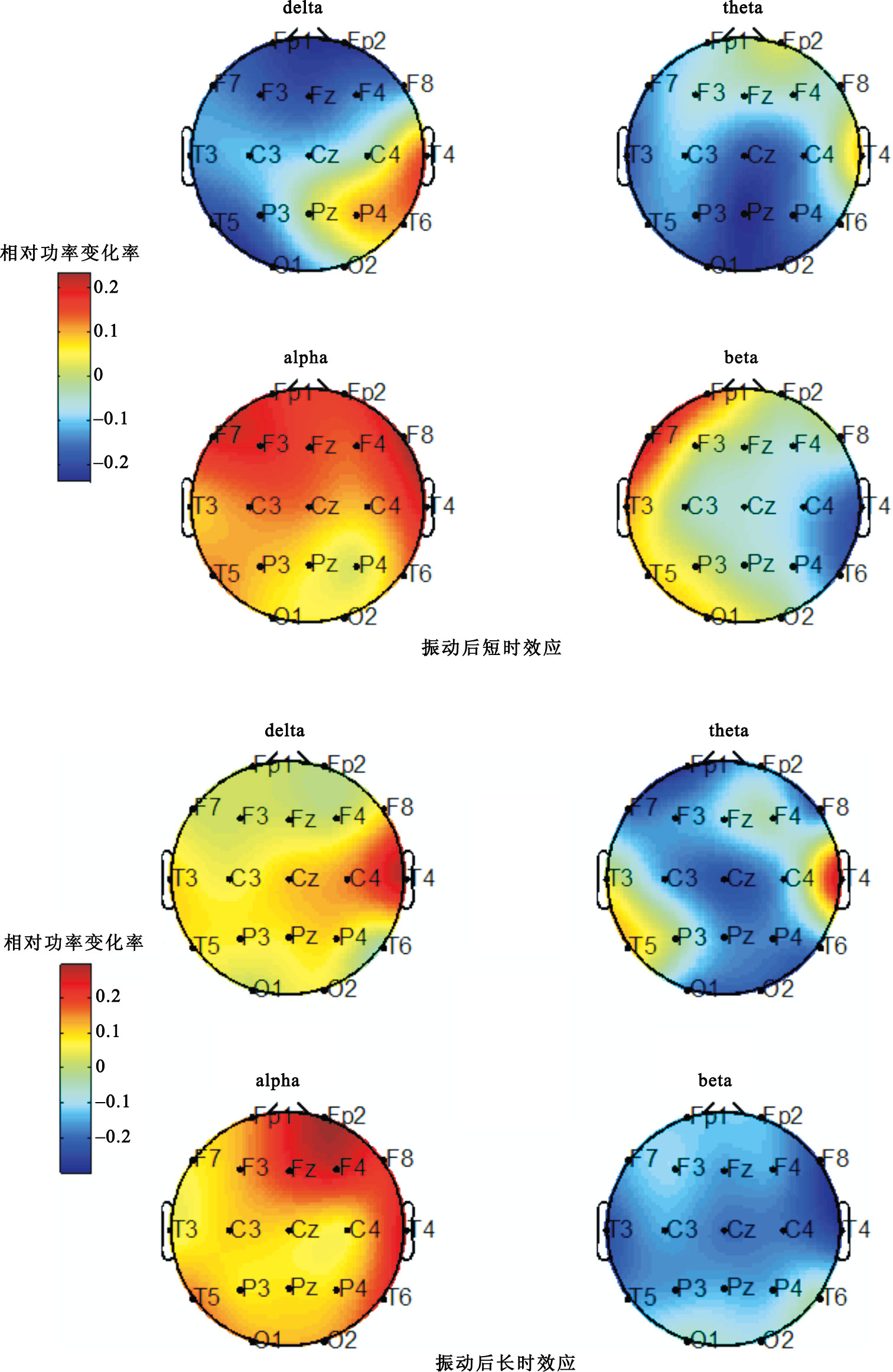

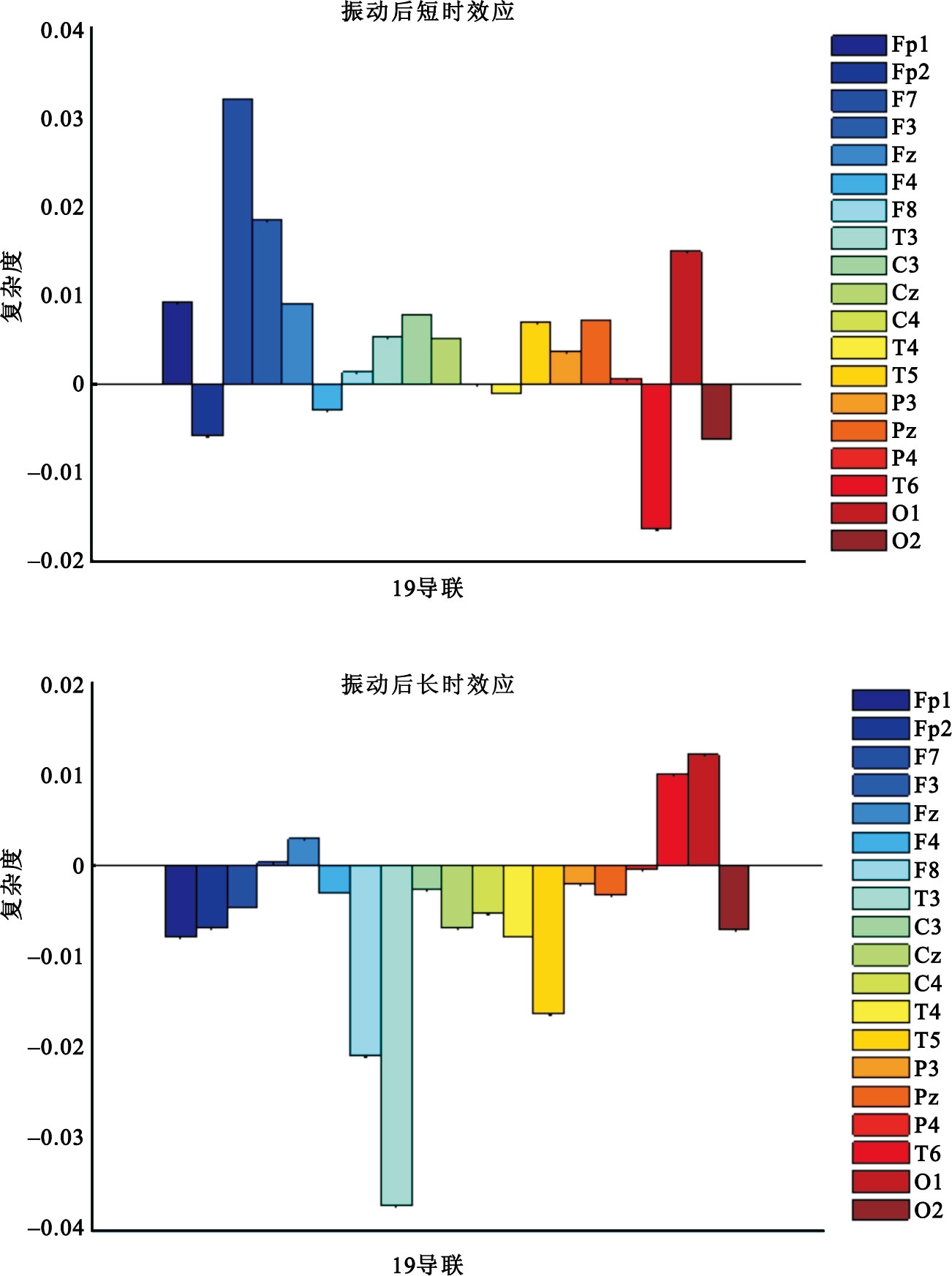

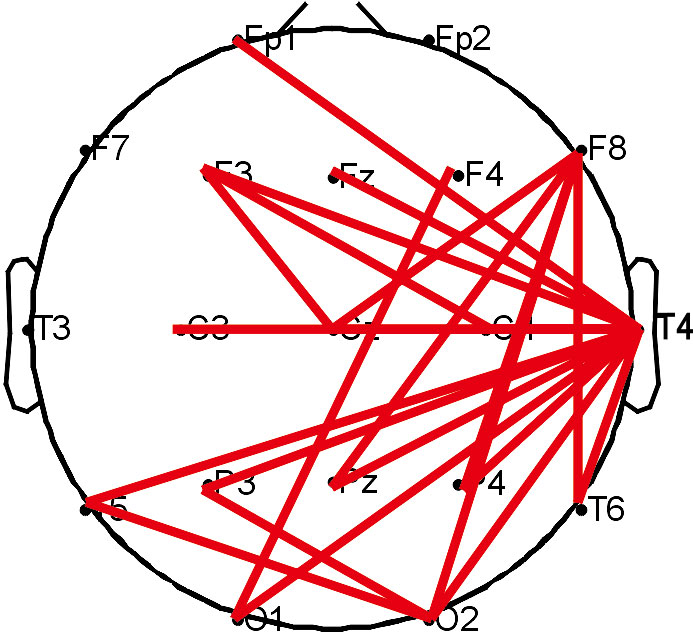

Somatosensory vibration can stimulate somatosensory area of human body, and this stimulation is tranferred to somatosensory nerves, and influences the somatic cortex, which is on post-central gyrus and paracentral lobule posterior of cerebral cortex, so that it alters the functional status of brain. The aim of the present study was to investigate the neural mechanism of brain state induced by somatosensory vibration. Twelve subjects were involved in the 20 Hz vibration stimulation test. Linear and nonlinear methods, such as relative change of relative power (RRP), Lempel-Ziv complexity (LZC) and brain network based on cross mutual information (CMI), were applied to discuss the change of brain under somatosensory vibration stimulation. The experimental results showed the frequency following response (FFR) by RRP of spontaneous electroencephalogram (EEG) in 20 Hz vibration, and no obvious change by LZC. The information transmission among various cortical areas enhanced under 20 Hz vibration stimulation. Therefore, 20 Hz somatosensory vibration may be able to adjust the functional status of brain.

Citation： MANa, WANGXuemin, TIANMiao, LIUJing, QIHongzhi, MINGDong, ZHOUPeng. Research on the Effects of 20 Hz Frequency Somatosensory Vibration Stimulation on Electroencephalogram Features. Journal of Biomedical Engineering, 2016, 33(6): 1046-1052. doi: 10.7507/1001-5515.20160168 Copy

1.	?BERGSTR?M-ISACSSON M, LAGERKVIST B, HOLCK U, et al. Neurophysiological responses to music and vibroacoustic stimuli in Rett syndrome[J]. Res Dev Disabil, 2014, 35(6): 1281-1291.
2.	SANTOS-FILHO S D, MONTEIRO M, PAIVA D N. Possible benefits of the whole body vibration in the treatment of complications in stroke patients[J]. Br J Med Med Res, 2014, 4(7): 1539-1551.
3.	VRY J, SCHUBERT I J, SEMLER O, et al. Whole-body vibration training in children with Duchenne muscular dystrophy and spinal muscular atrophy[J]. Eur J Paediatr Neurol, 2014, 18(2): 140-149.
4.	LJUNGBERG J, NEELY G, LUNDSTR?M R. Cognitive performance and subjective experience during combined exposures to whole-body vibration and noise[J]. Int Arch Occup Environ Health, 2004, 77(3): 217-221.
5.	SHERWOOD N, GRIFFIN M J. Evidence of impaired learning during whole-body vibration[J]. Journal of Sound Vibration,1992, 152(2):219-225.
6.	FUERMAIER A B M, TUCHA L, KOERT J, et al. Good vibrations--effects of whole body vibration on attention in healthy individuals and individuals with ADHD[J]. PLoS One, 2014, 9(2): e90747.
7.	REGTERSCHOT G R H, VAN HEUVELEN M J G, ZEINSTRA E B, et al. Whole body vibration improves cognition in healthy young adults[J]. PLoS One, 2014, 9(6): e100506.
8.	COTTONE L A, ADAMO D, SQUIRES N K. The effect of unilateral somatosensory stimulation on hemispheric asymmetries during slow wave sleep[J]. Sleep, 2004, 27(1): 63-68.
9.	ALEGRE M, LABARGA A, GURTUBAY I G, et al. Beta electroencephalograph changes during passive movements: sensory afferences contribute to beta event-related desynchronization in humans[J]. Neurosci Lett, 2002, 331(1): 29-32.
10.	MARTIN J H. Neuroanatomy: Text and atlas[M]. 3rd ed. New York: McGraw-Hill Companies, 2003: 125-126.
11.	BIAN Zhijie, LI Qiuli, WANG Lei, et al. Relative power and coherence of EEG series are related to amnestic mild cognitive impairment in diabetes[J]. Front Aging Neurosci, 2014, 6): 11.
12.	閆拓, 薛青,魏玲,等.老年人輕度認知障礙腦電的Lempel-Ziv復雜度分析[J].生物醫學工程學雜志,2013,30(5):972-975.
13.	CHEN Lu, SINGH V P, GUO Shenglian, et al. Copula entropy coupled with artificial neural network for rainfall-runoff simulation[J]. Stochastic Environmental Research and Risk Assessment, 2014, 28(7): 1755-1767.
14.	BABEL M S, BADGUJAR G B, SHINDE V R. Using the mutual information technique to select explanatory variables in artificial neural networks for rainfall forecasting[J]. Meteorological Applications, 2015, 22(3): 610-616.
15.	GOODIN P, CIORCIARI J, BAKER K, et al. A high-density EEG investigation into steady state binaural beat stimulation[J]. PLoS One, 2012, 7(4): e34789.
16.	BRAAK H, BRAAK E, YILMAZER D, et al. Functional anatomy of human hippocampal formation and related structures[J]. J Child Neurol, 1996, 11(4): 265-275.
17.	SMITH E E, JONIDES J. Storage and executive processes in the frontal lobes[J]. Science, 1999, 283(5408): 1657-1661.
18.	POULTON E C. Increased vigilance with vertical vibration at 5 Hz: an alerting mechanism[J]. Applied Ergonomics, 1978, 9(2): 73-76.
19.	WADA Y, NANBU Y, KIKUCHI M, et al. Aberrant functional organization in schizophrenia: analysis of EEG coherence during rest and photic stimulation in drug-naive patients[J]. Neuropsychobiology, 1998, 38(2): 63-69.

1. ?BERGSTR?M-ISACSSON M, LAGERKVIST B, HOLCK U, et al. Neurophysiological responses to music and vibroacoustic stimuli in Rett syndrome[J]. Res Dev Disabil, 2014, 35(6): 1281-1291.
2. SANTOS-FILHO S D, MONTEIRO M, PAIVA D N. Possible benefits of the whole body vibration in the treatment of complications in stroke patients[J]. Br J Med Med Res, 2014, 4(7): 1539-1551.
3. VRY J, SCHUBERT I J, SEMLER O, et al. Whole-body vibration training in children with Duchenne muscular dystrophy and spinal muscular atrophy[J]. Eur J Paediatr Neurol, 2014, 18(2): 140-149.
4. LJUNGBERG J, NEELY G, LUNDSTR?M R. Cognitive performance and subjective experience during combined exposures to whole-body vibration and noise[J]. Int Arch Occup Environ Health, 2004, 77(3): 217-221.
5. SHERWOOD N, GRIFFIN M J. Evidence of impaired learning during whole-body vibration[J]. Journal of Sound Vibration,1992, 152(2):219-225.
6. FUERMAIER A B M, TUCHA L, KOERT J, et al. Good vibrations--effects of whole body vibration on attention in healthy individuals and individuals with ADHD[J]. PLoS One, 2014, 9(2): e90747.
7. REGTERSCHOT G R H, VAN HEUVELEN M J G, ZEINSTRA E B, et al. Whole body vibration improves cognition in healthy young adults[J]. PLoS One, 2014, 9(6): e100506.
8. COTTONE L A, ADAMO D, SQUIRES N K. The effect of unilateral somatosensory stimulation on hemispheric asymmetries during slow wave sleep[J]. Sleep, 2004, 27(1): 63-68.
9. ALEGRE M, LABARGA A, GURTUBAY I G, et al. Beta electroencephalograph changes during passive movements: sensory afferences contribute to beta event-related desynchronization in humans[J]. Neurosci Lett, 2002, 331(1): 29-32.
10. MARTIN J H. Neuroanatomy: Text and atlas[M]. 3rd ed. New York: McGraw-Hill Companies, 2003: 125-126.
11. BIAN Zhijie, LI Qiuli, WANG Lei, et al. Relative power and coherence of EEG series are related to amnestic mild cognitive impairment in diabetes[J]. Front Aging Neurosci, 2014, 6): 11.
12. 閆拓, 薛青,魏玲,等.老年人輕度認知障礙腦電的Lempel-Ziv復雜度分析[J].生物醫學工程學雜志,2013,30(5):972-975.
13. CHEN Lu, SINGH V P, GUO Shenglian, et al. Copula entropy coupled with artificial neural network for rainfall-runoff simulation[J]. Stochastic Environmental Research and Risk Assessment, 2014, 28(7): 1755-1767.
14. BABEL M S, BADGUJAR G B, SHINDE V R. Using the mutual information technique to select explanatory variables in artificial neural networks for rainfall forecasting[J]. Meteorological Applications, 2015, 22(3): 610-616.
15. GOODIN P, CIORCIARI J, BAKER K, et al. A high-density EEG investigation into steady state binaural beat stimulation[J]. PLoS One, 2012, 7(4): e34789.
16. BRAAK H, BRAAK E, YILMAZER D, et al. Functional anatomy of human hippocampal formation and related structures[J]. J Child Neurol, 1996, 11(4): 265-275.
17. SMITH E E, JONIDES J. Storage and executive processes in the frontal lobes[J]. Science, 1999, 283(5408): 1657-1661.
18. POULTON E C. Increased vigilance with vertical vibration at 5 Hz: an alerting mechanism[J]. Applied Ergonomics, 1978, 9(2): 73-76.
19. WADA Y, NANBU Y, KIKUCHI M, et al. Aberrant functional organization in schizophrenia: analysis of EEG coherence during rest and photic stimulation in drug-naive patients[J]. Neuropsychobiology, 1998, 38(2): 63-69.
